PP FUME HOOD

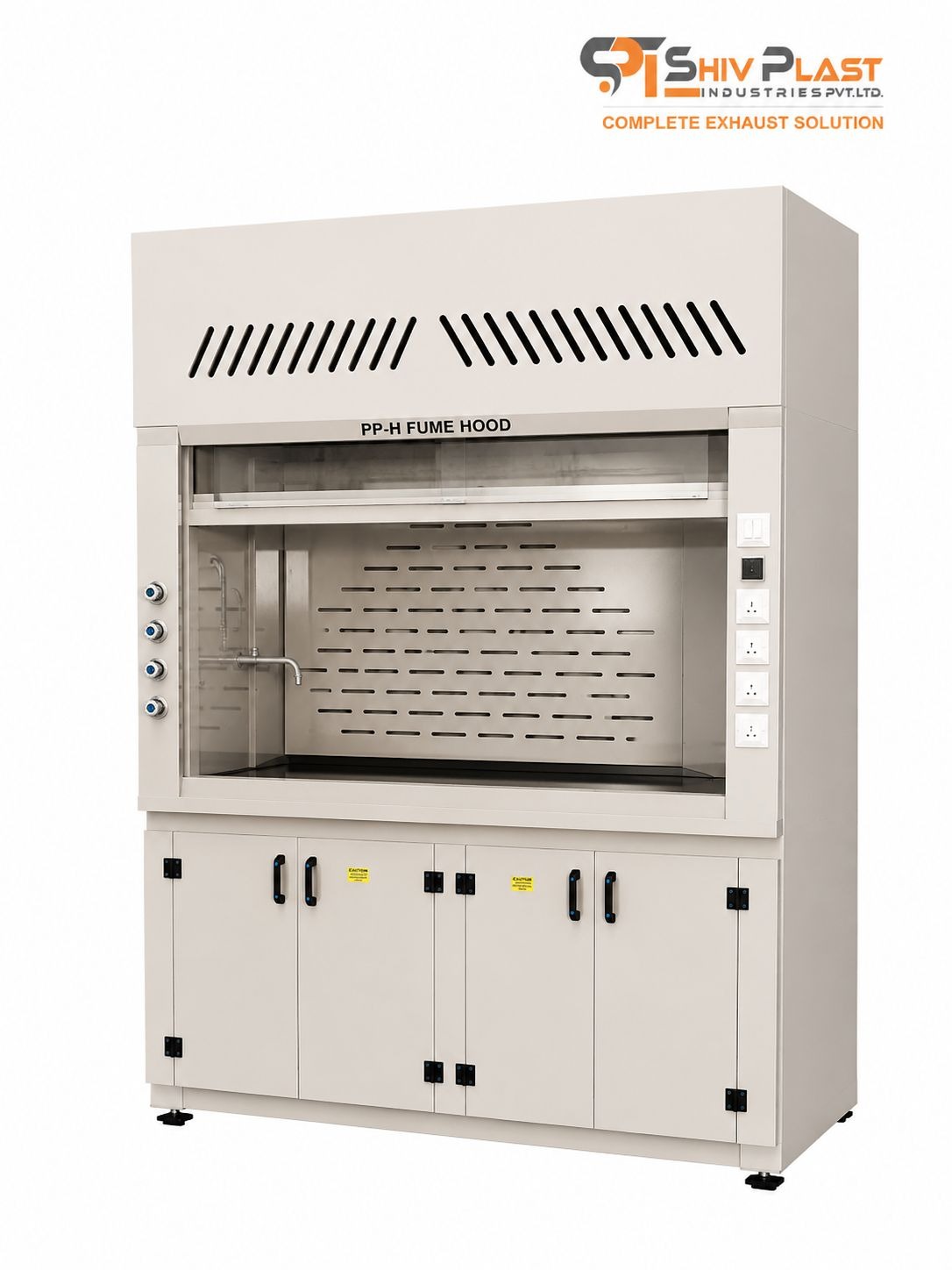

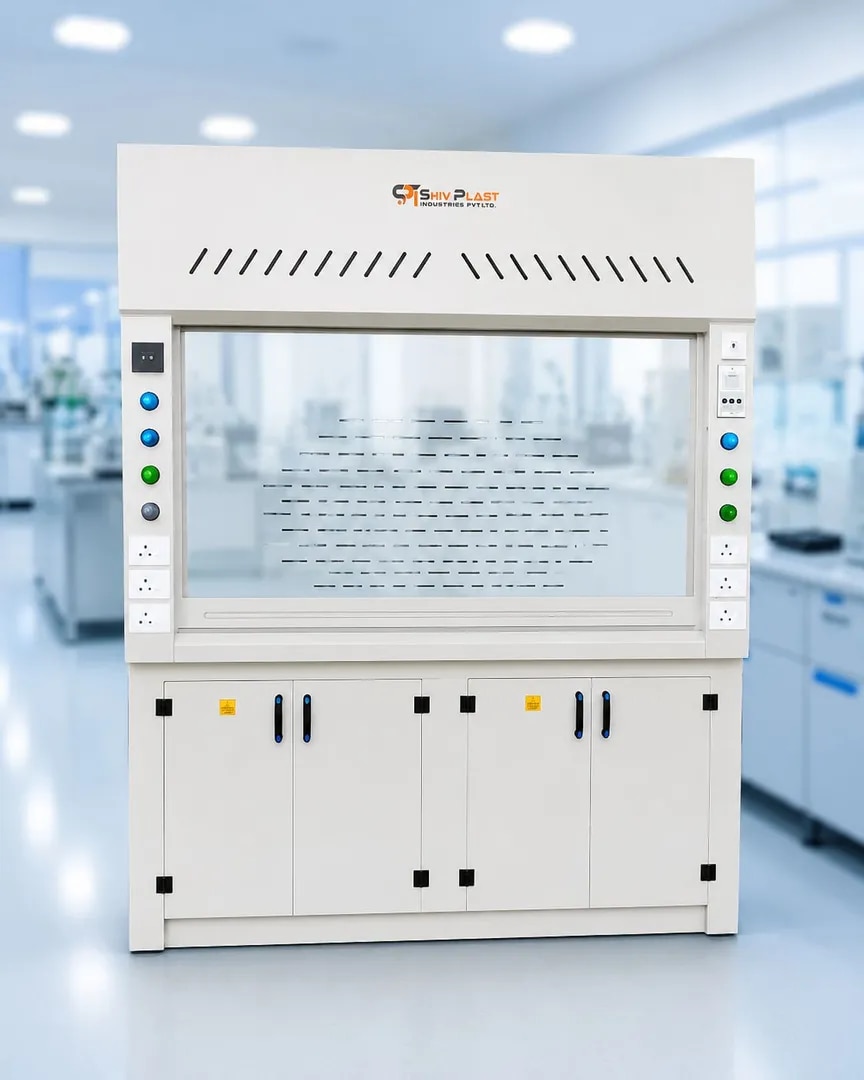

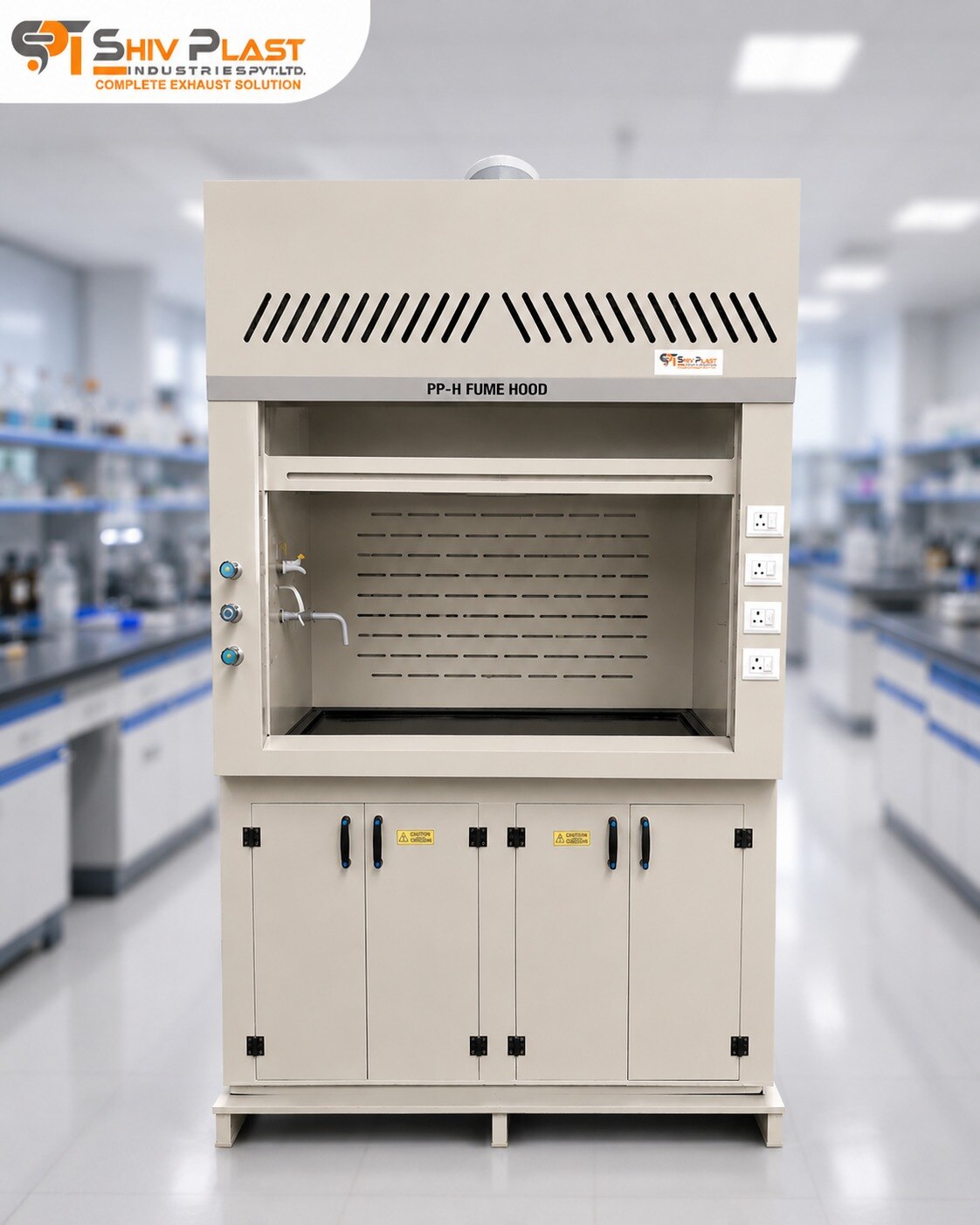

PP (Polypropylene) Fume Hood

Product Overview

A PP Fume Hood is designed to safely capture and exhaust hazardous fumes, vapors, and corrosive gases generated during laboratory and industrial processes. Manufactured from high-quality polypropylene, it offers excellent resistance to acids, alkalis, and corrosive chemicals, making it ideal for pharmaceutical, chemical, plating, and research laboratories.

Technical Specifications

Construction Material :- 100% Virgin Polypropylene (PP)

PP Sheet Thickness:- 8–15 mm (as per design requirement)

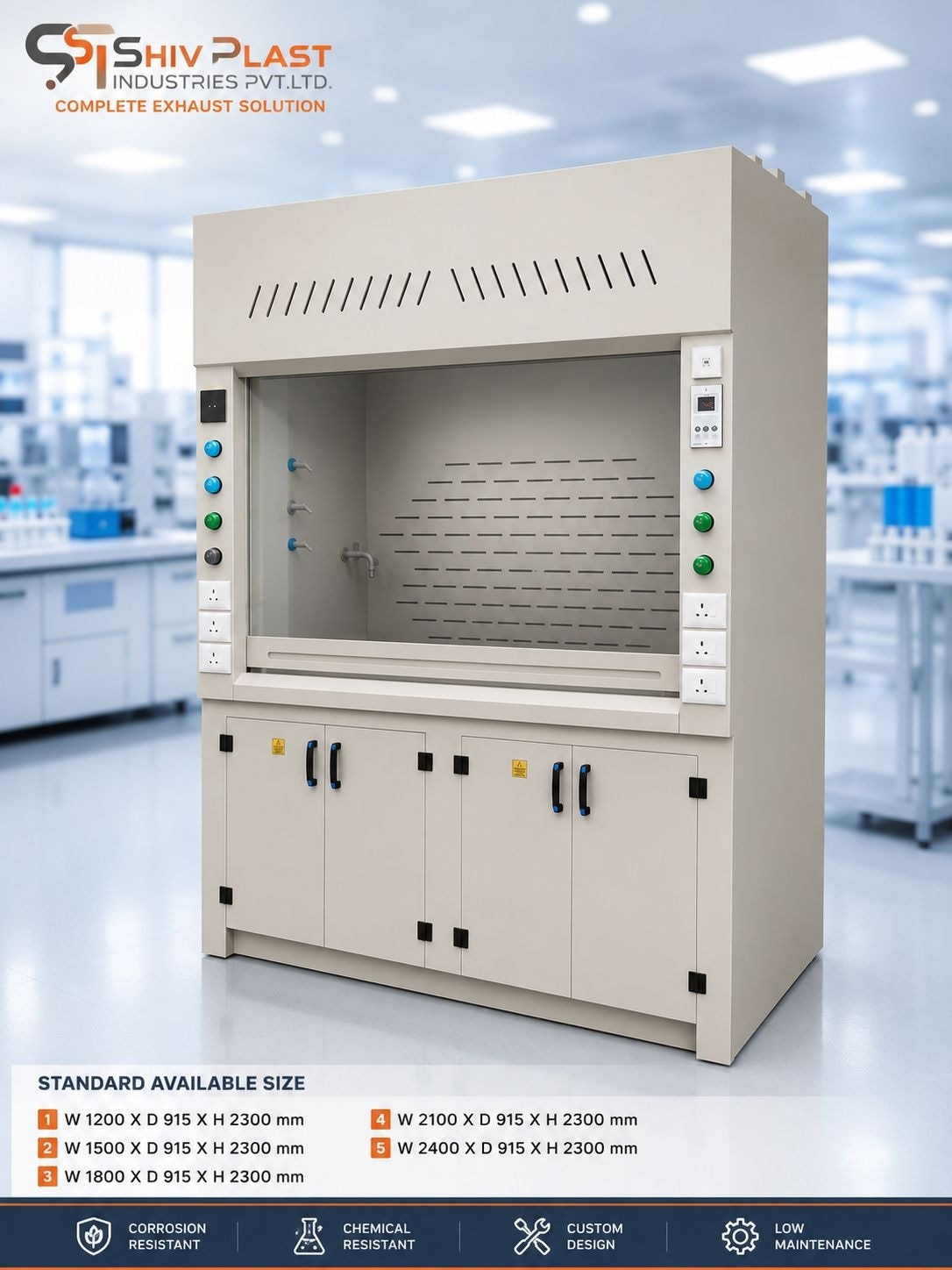

Standard Sizes:- 900, 1200, 1500, 1800 mm Width (Custom sizes available)

Worktop :-PP / Granite / Ceramic / Epoxy Resin (Optional)

Front Sash:- Vertical Sliding Polycarbonate / Toughened Glass

Sash Operation:- Counterweight Balanced System

Face Velocity:- 0.4–0.6 m/s (Recommended)

Airflow:- Designed as per required CFM and process application

Illumination:- LED Light (Vapour Proof)

Electrical Supply:- 230V AC, 50 Hz

Exhaust Connection:- PP/PVC Duct with External Centrifugal Blower

Noise Level:- Below 70 dB (Depending on blower selection)

Finish:- Smooth Welded Chemical Resistant Surface

Installation:- Floor Mounted with Base Storage Cabinet

Standard Features

* 100% Corrosion Resistant PP Construction

* Seamless Butt-Welded Fabrication

* High Chemical & Acid Resistance

* Counterbalanced Vertical Sliding Sash

* Chemical Resistant LED Lighting

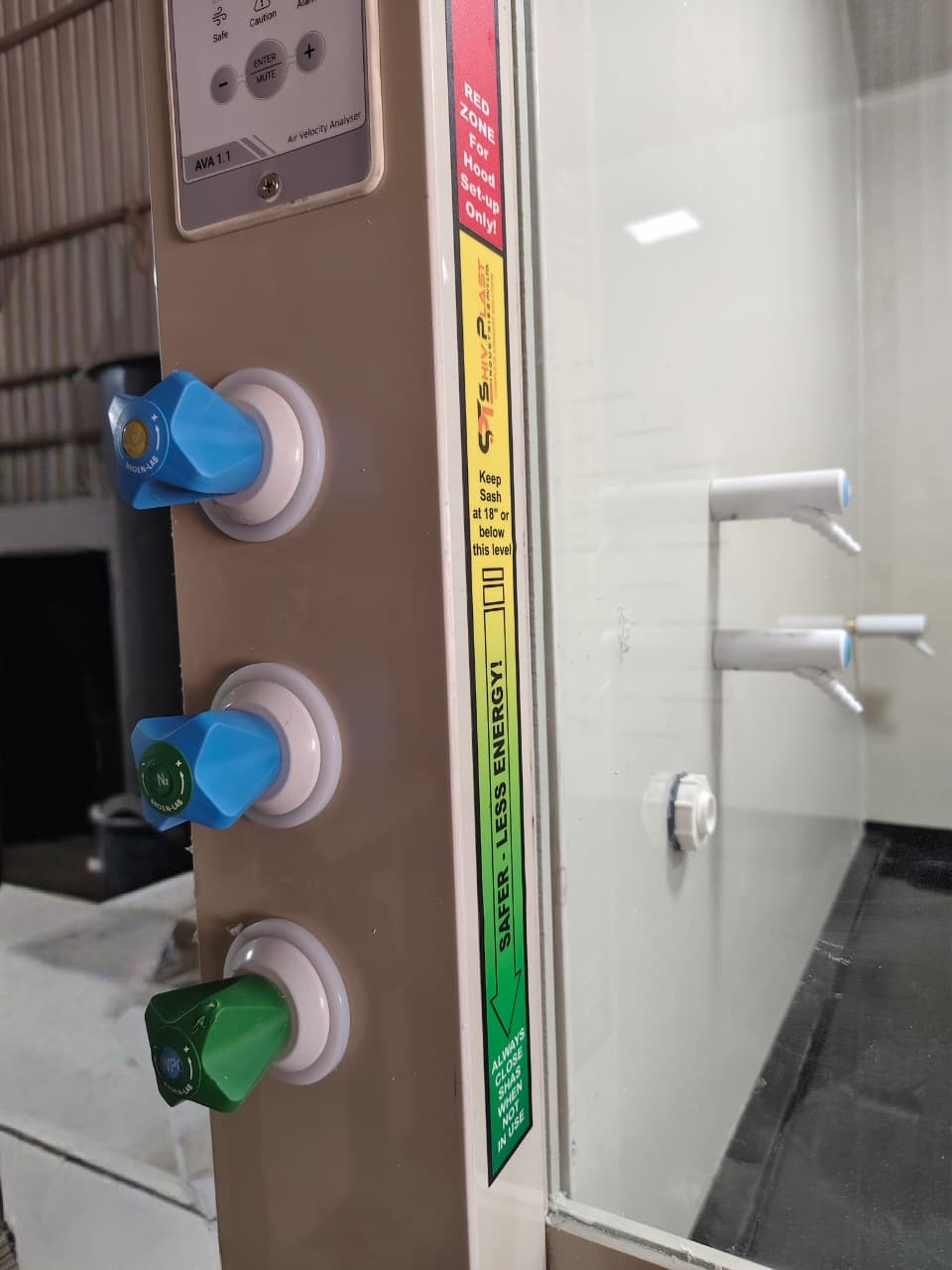

* Front Mounted Electrical Control Panel

* Utility Services (Optional):

* Water Tap

* Gas Cock

* Vacuum Valve

* Sink

* Electrical Socket

* Base Storage Cabinet for Chemical Storage

* Easy Cleaning & Low Maintenance

* External PP/FRP Centrifugal Blower Compatible

* Designed for Continuous Industrial Operation

Applications

* Pharmaceutical Industries

* Chemical Processing Plants

* R&D Laboratories

* Acid Pickling Plants

* Electroplating Industries

* Anodizing Plants

* Educational & Research Institutes

* Quality Control Laboratories

* Suitable for Handling

* Hydrochloric Acid (HCl)

* Sulphuric Acid (H₂SO₄)

* Nitric Acid (HNO₃)

* Phosphoric Acid (H₃PO₄)

* Hydrofluoric Acid (HF)*

* Ammonia

* Organic Solvents (subject to compatibility)

* Various Corrosive Fumes and Vapours

Optional Accessories

* PP Sink with Drain

* Water & Gas Fixtures

* Airflow Monitor

* Differential Pressure Gauge

* VFD Controlled Blower

* PP Ducting System

* FRP/PP Centrifugal Exhaust Blower

* Activated Carbon Filtration System (for ductless applications)

* Advantages

* Excellent Resistance to Corrosive Chemicals

* Rust-Free & Maintenance-Free Construction

* Long Service Life

* Lightweight Yet Strong

* Smooth Hygienic Surface

* Custom-Built as Per Customer Requirement

* Suitable for Pharma, Chemical & Industrial Applications

* Manufactured in Compliance with Good Laboratory Ventilation Practices
